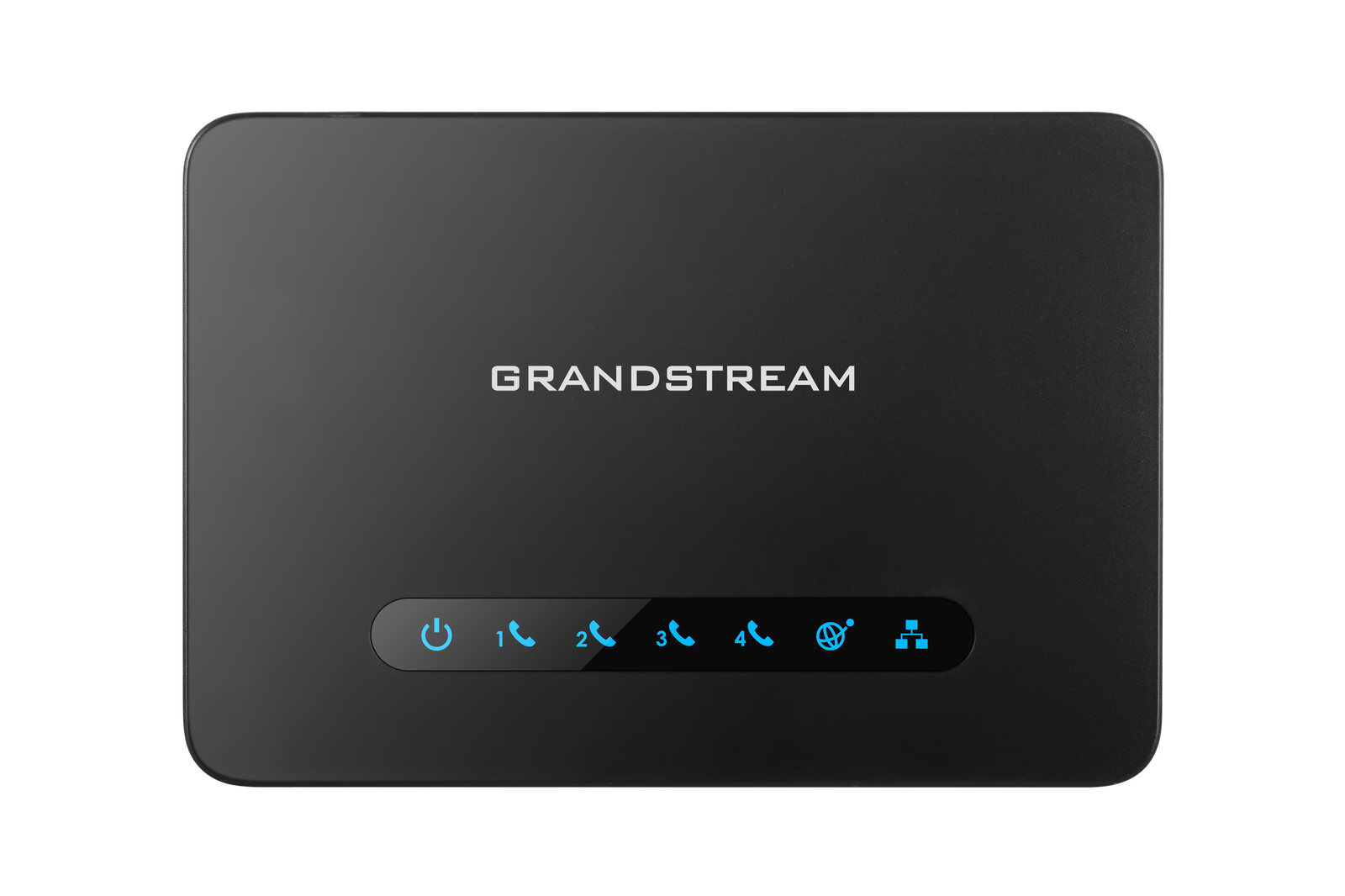

HandyTone 814, 4 FXS port, Gigabit NAT router, 1LAN, 1WAN

Vendor: Grandstream

Category: Network equipment / Gateway

Article number: HT814

TNVED: 8517 62 00 00

Description: Telephony interfaces

Four (4) RJ11 FXS ports

Network interfaces

Two (2) 10/100/1000Mbps RJ45 ports

LED indicators

POWER SUPPLY, LAN, WAN, TELEPHONE 1, TELEPHONE 2, TELEPHONE 3, TELEPHONE 4

Factory Reset button

Yes

Telephony functions

Caller ID display and lock, Call waiting, flash, blind or accompanied call transfer, Forwarding, Hold, Do not disturb mode, 3-way conference

G.711 speech codecs with Appendix I (PLC) and Appendix II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726, iLBC, OPUS, Dynamic reference frequency jitter buffer, advanced line echo compensation

Fax by IP

T.38 according to Group 3 fax transmission up to 14.4kpbs and auto-switching to G.711 for Fax Pass-through

Electrical load for short/long distances

2 REN, up to 1km on 24AWG line

Caller ID

Bellcore Type 1 and 2, ETSI, BT, NTT, and DTMF-based CID

Separation methods

Busy Signal, Reverse Polarity/Wink, Current Loop

Network protocols

TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP,

TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP*, TR-069

QoS

Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)

DTMF method

In-audio, RFC2833 and/or SIP INFO

Setup and management

HTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated configuration using AES encryption, system log

Wednesday

SRTP*

Control

TLS/SIPS/HTTPS

Management

System log support, SSH, remote management using the web browser

Universal power supply

Input: 100-240VAC, 50 Hz

Output: 12V/1.0A

Environmental characteristics

Working hours: 32º – 104ºF or 0º – 40ºC

Storage: 14º – 140ºF or -10º – 60ºC

Humidity: 10 – 90% Non-condensing

Dimensions and weight

28.5 x 130 x 90 mm (H x W x D)

Weight: 0.29 Kg
