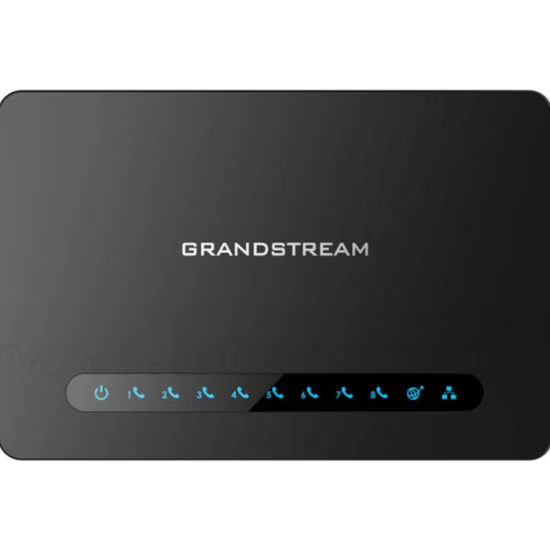

Module with Router HandyTone 818, 8 FXS ports, Gigabit NAT router, 1LAN, 1WAN

Vendor: Grandstream

Category: Network equipment / Gateway

Article number: HT818

TNVED: 8517 62 00 00

Description: Telephony interfaces

Eight (8) RJ11 FXS ports

Network interfaces

Two (2) 10/100/1000Mbps RJ45 ports

LED indicators

POWER (power supply), LAN (local area network), WAN (wireless network), PHONE1

(phone), PHONE2, PHONE3, PHONE4, PHONE5, PHONE6, PHONE7, PHONE8

Factory Reset button

Yes

Telephony functions

Number detection and blocking number detection, waiting for a call, transferring a call using the Flash button, blind call transfer, accompanied call transfer, forwarding, hold, blocking incoming calls, 3-way conferencing

G.711 voice codecs with Supplement (PLC) with Supplement II (VAD/CNG), G.722, G.723.1,G.729A/B, G.726, iLBC, OPUS, dynamic delay oscillation buffer,advanced line echo cancellation

Voice codecs

Fax relay of the third group of the standard T.38 with support for data transfer rates up to 14.4 kbit/s and auto-switching in G 711 for fax transmission

Short-range/long-range call range

2 REN, up to 1 km at 24 AWG

Caller ID (Caller ID)

Bellcore Type 1 and 2, ETSI, BT, NTT, and DTMF-based CID

Separation methods

Busy signal, Reverse polarity/control pulse, Current in the circuit

Network protocols

TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP,

TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP*, TR-069

QoS

Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)

DTMF In-audio, RFC2833 and/or SIP INFO method

Setup and management

HTTP, HTTPS, SSH, TFTP, TR-069, secure and automated configuration using AES encryption, system log

Wednesday

SRTP*

Control

TLS/SIPS/HTTPS

Management

System log support, SSH, remote management via browser

Universal power supply

Input: 100-240 VAC, 50-60 Hz

Output: 12V/1.5A

Environment

Working: 32º – 104ºF or 0º – 40ºC

Keeping: 14º – 140ºF or -10º – 60ºC

Humidity: 10 – 90% non-condensing

Dimensions and weight

(L)180mm*(W)120mm*(H)36mm 356g
