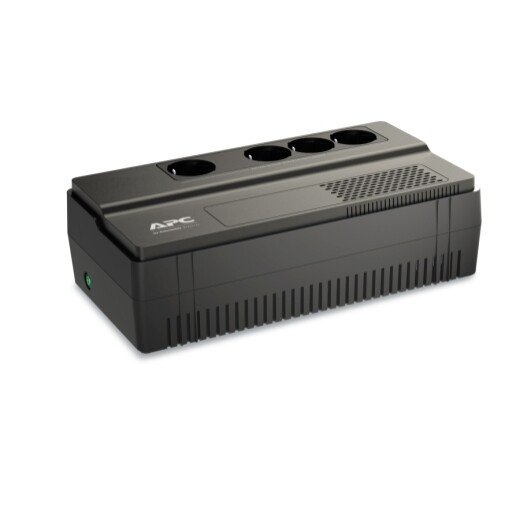

APC Easy UPS BV 650VA, AVR, Schuko Outlet, 230V

Vendor: APC

Category: UPS / Line-interactive UPS

Article number: BV650I-GR

TNVED: 8504 40 30 00

Description: Main features

- Output power: 375 Watts / 650VA

- Output connectors:

(4) Schuko CEE 7 (Battery backup)

- Rated output voltage: 230V

- Rated input voltage: 230V

- Input connection type: Schuko CEE 7/7P

- Cord length: 1.5 meters

Exit

- Maximum set power(W): 375 Watts / 650VA

- Output frequency (synchronized with the power grid): 50/60 Hz +/- 1 Hz Not synchronized

- Topology: Linear-interactive

- Type of voltage form: Step approximation of a sine wave

- Switching time: 6 ms typical : 10 ms maximum

Entrance

- Input frequency: 50/60 Hz +/- 5 Hz Auto detection

- Input voltage range during mains operation: 170 - 280V

- Number of power cables: 1

Batteries and battery life

- Battery Type: Lead-acid battery

- Typical recharge time: 8 hours

- Rated battery voltage: 12 V

- Expected battery life (years): 3 - 5

Communication and administrative tools

- Control panel: LED display with indicators on line (mains operation) : on battery (battery operation)

- Beep: Signal to switch to battery operation mode : special signal of battery depletion : continuous overload signal

Surge protection and noise filtering

- Burst energy Rating: 156joules

Physical parameters

- Maximum height: 93MM, 9.25cm

- Maximum width: 165MM, 16.5cm

- Maximum depth: 305MM, 30.5cm

- Net weight: 4.5KG

- Gross weight: 4.8KG

-Dimensions of the TRANSPORT PACKAGE: 237x143x373MM

- Color: Black

Environmental Parameters

- Operating temperature: 0 - 40 °C

- Operating range of relative humidity: 0 - 90 %

- Operating altitude range above sea level: 0 - 2032.1meters

- Storage temperature: -20 - 50 °C

- Relative humidity of storage: 0 - 90 %

- Storage altitude above sea level: 0 - 15240 meters

- Acoustic noise level at a distance of 1 m from the surface of the device: 40.0dB(A)

- Protection class: IP20

Accordance

- Compliance with the requirements: CE, EN/IEC 62040-1, EN/IEC 62040-2

Standard warranty: 2 years for repair or replacement. The warranty period begins to be calculated from the date of sale, but no later than 6 months from the date of production.
