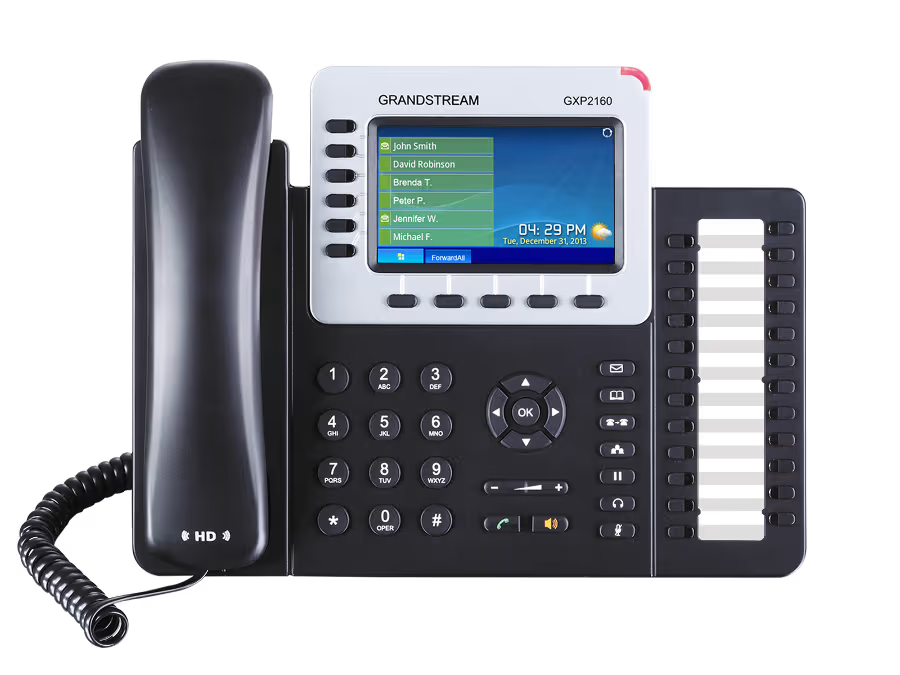

IP Phone Grandstream GXP2160, 6-line Enterprise HD IP Phone, 480x272 TFT color LCD, 24+6 speed keys, dual GigE with 802.3af PoE

Vendor: Grandstream

Category: Network equipment / Phone

Article number: GXP2160

TNVED: 8517 18 00 00

Description: Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR),

DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS,

SRTP*, IPv6, CDP/SNMP/RTCP-XR

Network interfaces

Dual 10/100/1000 Mbps network port with automatic recognition and

built-in PoE

Graphic display

Color LCD Display(480x272) TFT LCD 4.3 inches

Bluetooth

Yes, Bluetooth V2.1

Function keys

6 line keys, up to 6 SIP accounts, 24 BLF speed dial/extension keys with

two-color display, 5 context-sensitive programmable keys, 5

navigation/menu keys, 11 special function keys for functions such

as: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER,

CONFERENCE, CALL HOLD, HEADSET, MUTE, SEND/

REDIAL, SPEAKERPHONE, VOLUME +, VOLUME -

Speech codec

Support G.729A/B, G.711µ/a-law, G.726, G.722 (broadband),G723.1, iLBC, Opus,

in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO

Additional connectors

Headset with RJ9 connector (which allows the use of EHS with Plantronics headsets), USB

Telephony Functions

Hold, transfer, forwarding, conference up to 5 participants, Standby mode,

call capture, call separation (SCA)/call transfer (BLA), downloadable

phonebook (XML, LDAP, up to 2000 positions), call waiting, call log

(up to 500 entries), screen setup, auto-dial when answering the phone, auto-response,

one-click dialing, flexible dialing plan, hot table system, personal

music ringtones and music for standby mode, backup server.

Standard Applications

Last.fm (expected), weather, stocks, currency, news (expected), Internet radio

(expected), XML

HD Audio

Yes, both on the handset and on the speaker

Table mount

Yes, there are 2 corner positions

Wall Mount

Yes

Network Quality of Service

(QoS) Level 2 (802.1Q, 802.1p) and Level 3 (ToS, DiffServ, MPLS)

Safety

User and administrator level passwords,

MD5 and MD5-sess authentication, AES secure configuration file, media access control

SRTP*, TLS, 802.1x

Support for foreign languages

English, Arabic, Chinese, Croatian, Czech, Dutch, German,

French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish,

Portuguese, Russian, Slovenian, Spanish, Turkish.

Update/Service

Program update via TFTP/HTTP/HTTPS, mass pre-configuration

of devices via TR-069 or encrypted XML configuration file, FTP/FTPS

Energy and Environmental efficiency

The kit includes a universal power adapter: Input: 100-240 V ; Output: +12V, 1A; Built

-in current-over-Ethernet (802.3af) The maximum power consumption is 12 watts (power adapter)

or 12.95Watts (PoE)

Dimensions

Dimensions: 222 mm (W) x 210 mm (L) x 93 mm (H);

Device weight: 0.98kg; Package weight: 1.63 kg

Temperature and Humidity

Operation: from 0°C to 40°C

Storage: -10°C to 60°C

Humidity: 10% to 90% non-condensing

Contents of the delivery set

GXP2160 phone, handset with cord, base, Universal power supply, Power cord, Quick Start Manual

Compatibility

FCC Part15 (CFR 47) Class B, EN55022 Class B, EN61000-3-2, EN61000-3-3, EN55024,

EN60950-1, AS/NZS

CISPR22 Class B, AS/NZS CISPR 24; RoHS; UL 60950 (power supply)
