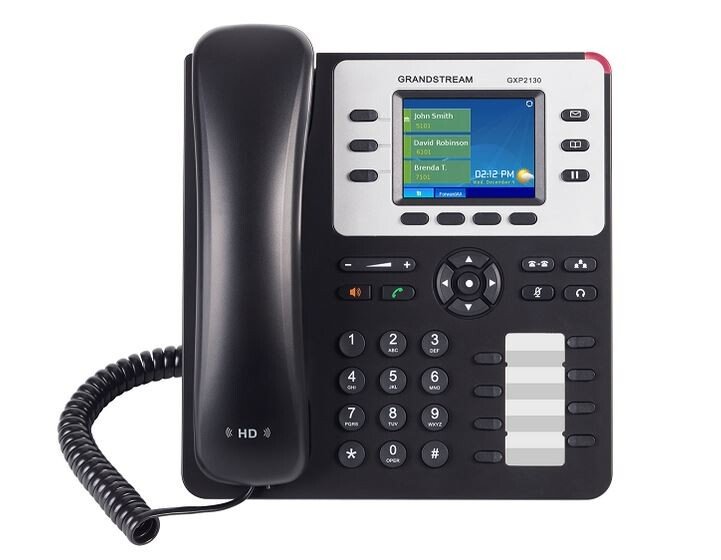

Grandstream GXP2130, 3-line Enterprise HD IP Phone, Bluetooth, 320x240 TFT color LCD, dual GigE ports with 802.3af PoE, (with po

Vendor: Grandstream

Category: Network equipment / Phone

Article number: GXP2130

TNVED: 8517 18 00 00

Description: Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x,

TLS, SRTP*, IPv6, CDP/SNMP/RTCP-XR

Network interfaces

Dual 10/100/1000Mbps network port with automatic identification and

built-in PoE

Graphic display

Color TFT LCD display with a resolution of 320x240 pixels and a diagonal of 2.8 inches

Function Keys

Z line keys and up to 3 SIP accounts, 8 speed dial/extension keys

BLF with two-color LEDs, 4 context-sensitive programmable

keys, 5 navigation menu keys, 11 separate keys for functions:

MESSAGE (with LED indicator), PHONEBOOK, TRANSFER,

CONFERENCE, HOLD, HEADSET, OFF SOUND, SEND/REPEAT. SET,

SPEAKER. LOUD+, a loud-voice codec

Support G.729A/B, G.711µ/a-law, G.726, G.722 (broadband),G723.1, iLBC,

Opus, in- and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, CNG, AEC,

PLC, AJB, AGC

Additional ports

Headset with RJ9 connector (which allows the use of EHS with Plantronics headsets)

Telephony Functions

Hold, Transfer, Redirect, audio conference on 4 sides,

Call parking, call interception, SCA (Shared call appearance) BLA (Bridged

line appearance), downloadable phonebook (XML, DAP, up to 2000 entries),

call waiting, call log (up to 500 entries), screen setup, auto-dial

when you pick up the phone, auto-answer, dial on click, flexible dial plan, shared

desktop (hot-desking), custom music ringtones and music in

hold mode, server margin and failure bypass

Standard Applications

Weather, XML

HD Audio

Yes, both on the handset and on the speaker

Base stand

Yes, there are 2 corner positions

The possibility of mounting to the wall

Yes

QoS

QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS)

Safety

User and administrator level passwords,

MD5 and MD5-sess authentication, AES secure

configuration file, media access control SRTP*, TLS, 802.1x

Multilingual support

Arabic, Chinese, English, Croatian, Czech, Dutch, German,

French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish,

Portuguese, Russian, Slovenian, Spanish, Turkish

Multilingual update/ service provision

Program update via TFTP/HTTP/HTTPS, mass provision of services

via TR-069 or encrypted XML configuration file, FTP/FTPS

Energy consumption and environmental energy efficiency

The kit includes a universal power adapter: Input: 100-240V,

AC; Output: 12V, DC/0.5A (6W); Input: Built-in Poe (Powered via

Ethernet), 802.3af, class2

Dimensions and weight

Dimensions 193mm (W) x 211mm (L) x 85mm (H)

Weight of the device: 0.81kg; Package weight: 1.44kg

Temperature and Humidity

0 ~ 40ºC (32 ~ 104ºF), 10 ~ 90% (non-condensing)

Contents of the delivery set

GXP2130 phone, handset with cord, base, universal power

supply, power cord,

Quick Start Guide

Compliance with FCC Part 15 ClassB, EN55022 ClassB, EN61000-3-2, EN61000-3-3, EN55024, EN60950-1

RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950
