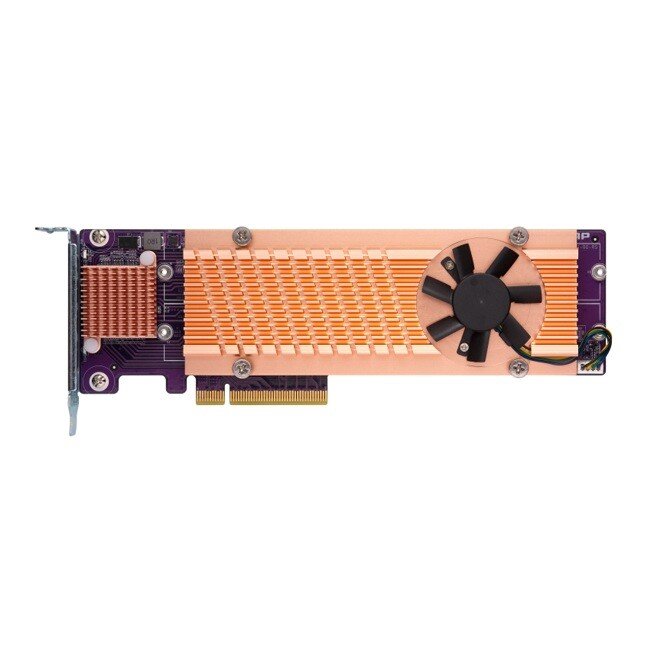

Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface;
QNAP QM2-4P-384A Quad M.2 PCIe SSD Expansion Card Gen3 x8 — Buy in Tbilisi | IPTECH
SKU:
QM2-4P-384
Cheapest shipping from 5 gel
Stock Status:
2.0 pcs
Delivery Status:
1-3 Day
X
14
Visitors are viewing this product right now
Description
General Information
Device Type: Quad M.2 PCIe SSD Expansion Card (QM2 Series)
Host Interface: PCIe Gen3 x8
Form Factor: Low-profile expansion card (Low-profile bracket pre-installed; full-height bracket included)
Target Application: Ultra-high performance storage expansion, multi-drive M.2 NVMe SSD caching, and high-IOPS storage pool creation
Technical Data
| Technical Specifications | |
|---|---|
| Supported SSD Form Factors | 4 x M.2 2280 (M-Key, PCIe NVMe Gen3 x4) |
| Bus Interface | PCIe Gen3 x8 (up to 64 Gbps aggregate transfer bandwidth) |
| Controller Engine | PCIe switch controller for dynamic PCIe bandwidth allocation across all four M.2 SSD slots |
| Cooling System | Smart cooling module equipped with a heat sink and temperature-controlled quiet fan to prevent thermal throttling |
