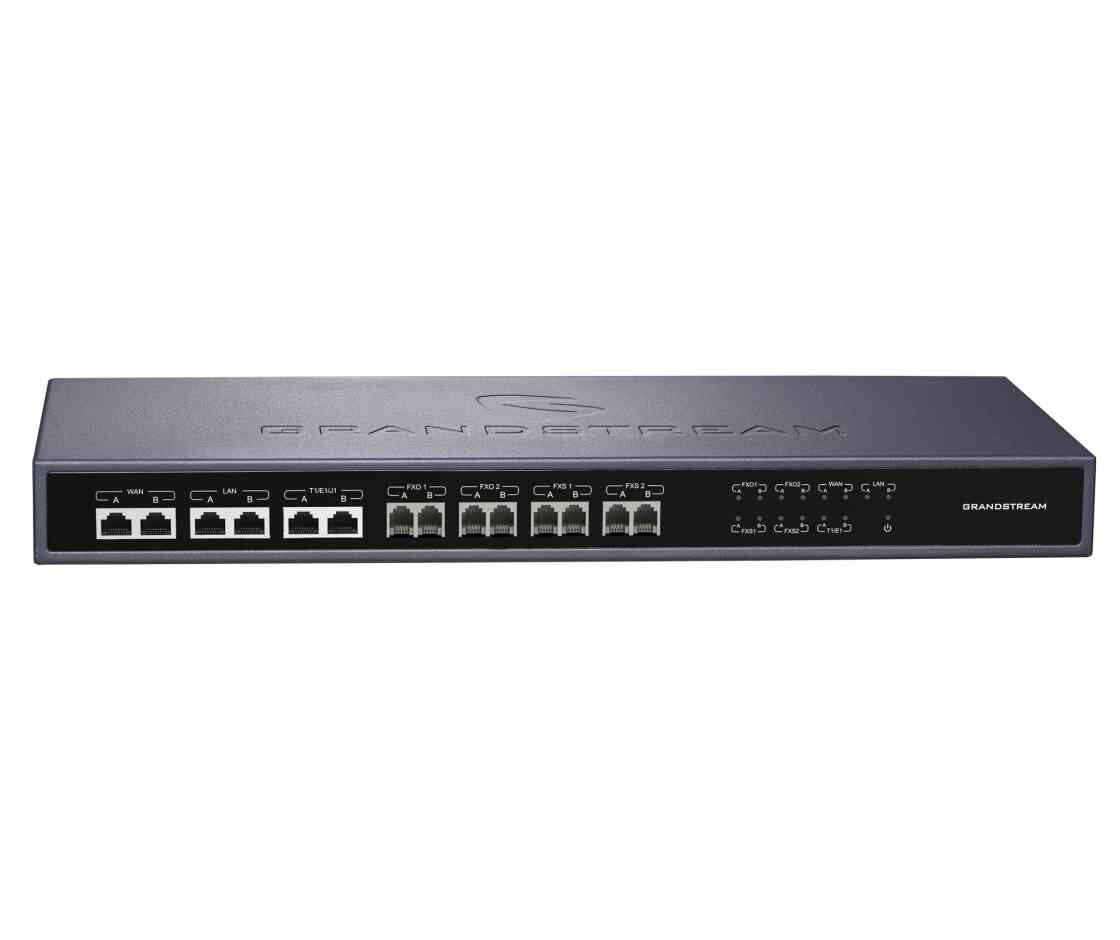

Grandstream HA100, High Availability Controller for UCM6510

Vendor: Grandstream

Category: Network equipment / PBX

Article number: HA100

TNVED: 8473 30 20 00

Description: Analog Telephone FXS ports

8 RJ11 ports

FXO ports

8 RJ11 ports

Network interfaces

Three adaptive Gigabit ports (switched, routed or dual card modes) with PoE+

NAT Router

Yes (Router and switch mode support)

Ports for external devices

2*USB 3.0, 1* SD card port

SIDs

Power 1/2, FXS, FXO, LAN, WAN, Heartbeat

LCD screen

128x32 dot matrix LCD screen with DOWN and OK buttons

Reset button

Yes, a long press to reset to factory settings and a short press to reboot

Voice packet transmission capabilities

LEC with NLP-packaged voice protocol, operator-class echo cancellation (128 ms suppression depth) Dynamic jitter buffer, modem detection and auto-switching on G.711, NetEQ, FEC 2.0, jitter resistance up to 50% loss of audio packets

Voice and fax services. codecs

Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38

Video codecs

H.264, H.263, H263+, H.265, VP8

QoS

Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

API

Full API support for integrating third-party platforms and applications

The operating system

Based on Asterisk 16 version

DTMF method

In-band audio, RFC2833, and SIP INFO

Automatic configuration

Mass configuration using an XML configuration file with AES encryption, auto detection and auto configuration of Grandstream subscriber IP devices via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), a list of events between the local and remote backbone

Network protocols

SIP, TCP/UDP/IP, RTP/RTCP, IAX, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP**, TLS, LDAP,HDLC, HDLC-ETH, PPP, Frame Relay (expected), IPv6, OpenVPN®

Rebound methods

Busy tones/Overload/Warning, reverse polarity, short-term shutdown, circuit current shutdown

Data encryption

SRTP**, TLS, HTTPS, SSH, 802.1X

Universal power supply

2x post. Current 12V power connector

Input: 100~240V AC, 50/60Hz; Output: Post. Current 12V, 2A

Sizes

485mm(L) x 187.2mm(W) x 46.2mm(H)

Weight

Device weight: 2550g;

Package weight: 3320g

Temperature and humidity

Operation: 32 - 113ºF / 0 ~45ºC, Humidity 10 - 90% (non-condensing)

Storage: 14 - 140ºF / -10~60ºC, Humidity 10 - 90% (non-condensing)

Mounting

Rack and table mounting

Supported languages

-Web Interface: English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech, Turkish

-Customizable IVR/voice prompts: English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic, Dutch

-Customizable language pack to support any other languages

Caller ID

Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT

Reverse polarity/Wink signal

Yes, with the enable/disable option when establishing and terminating a call

Call handling

Multiple configurable call queues, automatic call allocation (ACD) by availability/agent skills/occupancy level; queue announcements

Customizable auto Secretary

Up to 5 levels of IVR (voice menu) in multiple languages

Maximum call capacity

Users: 3000

At the same time. calls (G.711): 450

Max. at a time. SRTP** calls (G.711): 300

Maximum number of conference bridge participants

10 video conference rooms and up to 80 participants with 1080p, assuming 4 video streams + 1 shared screen (H.264 and Opus)

Voice conference: up to 300 participants (G.711

The Wave Mobile App

Free; Available for desktop (Windows 10+, Mac OS 10+), web (Firefox and Chrome browsers) and mobile platforms (Android and iOS), allows users to join meetings held at UCM, connect with other users/solutions and make/receive calls using SIP accounts registered on UCM6300 series IP PBX

Call functions

Call parking, Call forwarding, Call transfer, Call waiting, caller ID, Call recording, Call log, Ringtone, IVR, Music on hold, Call routing, DID, DOD, Do Not disturb (DND), DISA, Call group, Simultaneous call, Schedule, PIN groups, Call queue, call interception group, intercom, voicemail, wake-up call, SCA, BLF, voicemail to e-mail, fax to e-mail, speed dial, callback, name dialing, emergency call, follow me function, blacklist/whitelist, voice conferencing, video conferencing-communication, event list, function codes, delay/termination of a busy line call, voice control, meeting reports, sending/receiving virtual faxes, e-mail to fax

Firmware update

It is supported by the Grandstream Device Management System (GDMS), an automatic configuration and management system, provides a centralized interface for configuring, managing, monitoring and correcting errors for Grandstream devices

Accordance

FCC: Part 15 (CFR 47) Class B, Part 68

CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368-1, ETSI ES 203 021, ITU-T K.21

IC: ICES-003, CS-03 Part I Issue 9

RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/CA S002, AS/CA S003.1/.2

Power adapter: UL 60950-1 or UL 62368-1
