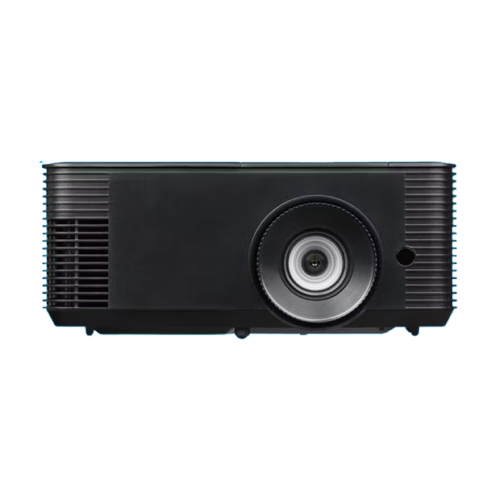

InFocus MULTIMEDIA PROJECTOR,MODEL P117, IN2139WU

Vendor: InFocus

Category: Information display systems / Projectors

Article number: IN2139WU

TNVED: 8528 69 99 00

Description: Projection technologies  Texas DLP® Tools

Panel size  0.55 inch S450

Native resolution  XGA

Pixels  1024 x 768

Aspect ratio  4:3

Contrast ratio  28500:1

Brightness (Lumens)  4000

Light source  Ultra-high pressure lamp

The service life of the light source is a maximum of hours  15000

Maximum supported resolution  1920 x 1200

Horizontal synchronization. Range (kHz)  31.5 - 97.6

Vertical synchronization. Range (Hz)  56 - 120

Uniformity (%)  JBMA 80%, ANSI 75%

Adjusting the zoom of the lens  Guide

Image offset (%)  115

F-stop  2.41/2.53

Adjustment of trapezoidal distortion  Guide

Vertical correction of trapezoidal distortions  ±40

Projection coefficient  1.94:1 - 2.16:1

Projection distance (meters/feet)  1,2–12,0/3,94–39,4

Optical zoom  1,1:1

Digital Zoom Reduction/Increase  0,8x ~ 2,0x

Focus Adjustment  Guide

Power supply  100~240 VAC; 50~60 Hz

Max. power consumption (W)  320 W

Power consumption Min. (W)  220 W

Standby power consumption (W)  <0.5

Dimensions (W x H x D) (mm/inch)  124.5 x 236.2 x 312.4 / 4.9 x 9.3 x 12.3

Product Weight (Kilograms/pounds)  3.2/7.1

Fan noise (dB)  21

Audio (W)  10

Operating Temperature (Celsius/Fahrenheit)  5 ~ 40 / 41 ~ 104

Working humidity (%)  10~85

Maximum working height (meters/feet)  3048/10000

Storage Temperature (Celsius/Fahrenheit)  -10 ~ 60 / 14 ~ 140

Storage humidity (%)  10 ~ 85

Safety  Kensington Security Slot™

In the box  Power cord, HDMI cable, safety instructions, user documentation, remote control (without batteries)

Safety and regulation  CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS

Environmental   WEEE, EU RoHS, China RoHS, CEL, CECP

Completion: Power cord, HDMI cable, safety instructions, user documentation, remote control (without batteries)

Optional: Interfaces Mini D-sub 15-pin (VGA) Composite Video HDMI™ 1.4 3.5 mm Stereo Mini Jack RS232 All Major 3D Formats USB-A for Service
